DIY Tutorial: Acrylic Drapery Rods

July 20, 2012 in Decor, DIY, Inspiration, Living Room, My Home, Projects, Tutorials with 48 Comments

I have loved acrylic curtain rods for years (name is interchangeable with lucite drapery rods). They add a bit of sparkle to a room, and I think they are so simple and beautiful. An elegance is effortlessly ushered into a room with their presence. Take a look at these inspiration photos. Love the square rod! And the brass hardware? Swoon.

: Gretchen Everett Hardware & Home

Mary Anne Smiley Interiors

Sarah 101, "Contemporary Living"

DHome

http://stitchdrapery.blogspot.com

However, they have always been something I put out of my mind because of budget. A quick visit to this site, and your mind reels at the cost: 8 foot 2″ acrylic rod $550 + pair of endcaps $195 = $745 FOR ONE ROD!! Eek.

Well, I dismissed the idea until I had an epiphany one day…why not find out if there is a plastic company that will supply the rods for me? Maybe I could save money by not going through a fancy curtain rod company? After calling around for pricing, I finally landed on Nationwide Plastics based in Dallas, Texas. I have to give credit to their A+ employee, Kip, who sat with me on the phone a long time and answered my questions. He taught me quite a lot about acrylic, valuable information I can now share with you! Side Note: Not in the DFW area? No problem, Kip will ship to you!

Basically, there are two different types of acrylic: cellcast and extruded. Extruded acrylic is the lower end type – it is more like plastic, may have imperfections, yellows over time, and scratches easily. It is much cheaper than cellcast if you just want the look and are willing to take the chance it may not look great very long. Extruded acrylic is not as strong either so you might need a center support if you use this as your rod. Per Nationwide Plastics pricing for one six foot rod length, see table below for cost of rods by thickness.

Extruded Acrylic Rod (six foot length)

½ inch	$3.26
¾ inch	$7.63
1 inch	$12.50
1 ½ inches	$31.63
2 inches	$72.86

Cellcast acrylic rods come in eight foot lengths. Compared to extruded acrylic, it is much much stronger, more clear, is similar to glass in weight and feel, does not yellow over time, and gives off more sparkle. In my opinion, it is a superior product for this type of application, and therefore, what I chose for my home. See table below for pricing by thickness.

Cellcast Acrylic Rod (eight foot length)

½ inch	$20.31
¾ inch	$24.00
1 inch	$31.26
1 ½ inches	$58.22
2 inches	$105.23

Now, you may be wondering…what if I want cellcast acrylic, but I need it to be five and a half feet wide? No problem, says Kip, he will cut it to the length you need for free, but you have to purchase by the rod. You will still be buying the rods in eight feet lengths for cellcast, and six feet lengths in the extruded. If you need two four foot lengths of cellcast, you are good because you just have to purchase one rod. But if you require two five foot rods, you will have to buy two lengths. Side note on curtain rods: I always make sure my curtain rods extend six to ten inches past my frame to give more width to my windows, and to ensure the drapes will frame the windows nicely.

I also thought you should know that 1/2 inch is tiny for a curtain rod thickness, but I thought some of you may desire that if you have a light project so I am including it. However, for regular drapes, I would recommend at least a 1″ thickness. As for me and my house? 1 1/2″ rods.

Image by Kat Phillips, TheGrayAttic.com

On to end caps… You may decide you don’t want end caps as shown below. The thing is, you have to make sure you get the ends of your rods polished which Kip will do for an extra $7.50 per rod.

designreduxx.blogspot.com

When I first began this project, I thought, “Okay, so I will get my rods for a totally awesome price, and then I will be home free!” Well, not so much. Since I wanted end caps, I had to add those on, plus wall brackets, and rings. For my end caps, I was hoping to find simple ones in an antique brass color to tie in with the darkened bronze on the wedding cake chandelier in my living room. Some of the cheaper end caps I found online were at least $20 EACH. Bad news for me, so I had to come up with a different plan.

That led me to a local hardware store to find something that maybe wasn’t an end cap but looked like an end cap. Something affordable. After walking through the hardware section with no luck, I meandered over to the plumbing section. And there, there in the land of PVC pipes, I found my end caps.

They actually are called plumbing caps, and you have two options – PVC or copper.

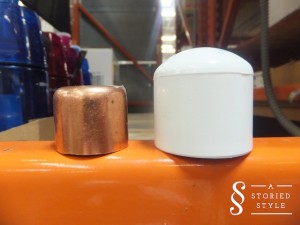

Here is a picture for sizing and shape of the PVC end caps. They start at 1/2″ and go up to 2″. You can see they have a bit of a rounded top which I did not want. You have to use the 2″ to get the flat top, and that would have been too big for my rod.

½ inch	.36
¾ inch	.46
1 inch	.66
1 ½ inches	.97
2 inches	$2.26

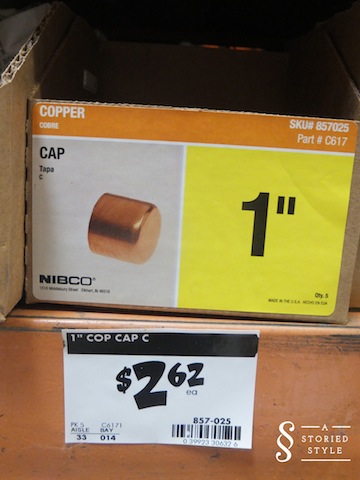

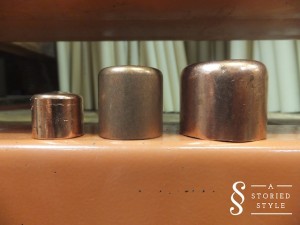

Therefore, I opted for the copper. It is a little more expensive, but I liked the weight and the thickness better. I wanted my rods to be sleek, and the PVC caps are more bulky. Only the 1/2″, 3/4″, and 1″ copper caps are pictured.

½ inch	.74
¾ inch	$1.19
1 inch	$2.62
1 ½ inches	$3.87
2 inches	$5.63

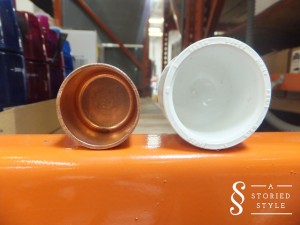

I also preferred the copper because I felt it fit the rod better. PVC pipe is hollow so the inside diameter of the 1″ rod is 1″. Therefore, the cap is a bit thicker to make up for this. You can see the contrast between a 1″ copper cap and a 1″ PVC cap. It is pretty different!

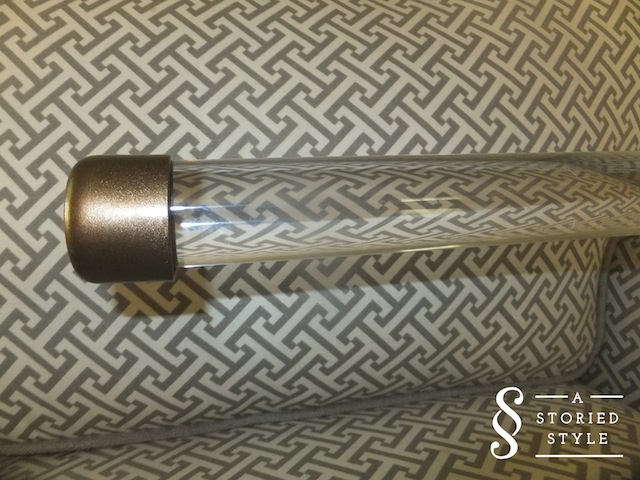

Obviously, copper is not an antique brass color, it is copper color. A quick spray with some trusty metallic Rustoleum in “Antique Brass”, and we were good to go.

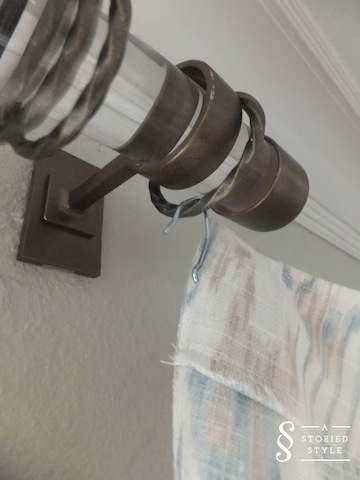

Surprisingly, it was difficult to find some affordable wall brackets to hold the rods in the 1 1/2″ size. I ended up using these from West Elm and also painted them in the Rustoleum antique brass color.

In order to slip the rod through the bracket and secure the end caps, I hot glued white velcro squares to the inside of the end cap and the end of the rod. I used hot glue to ensure the velcro would stay on.

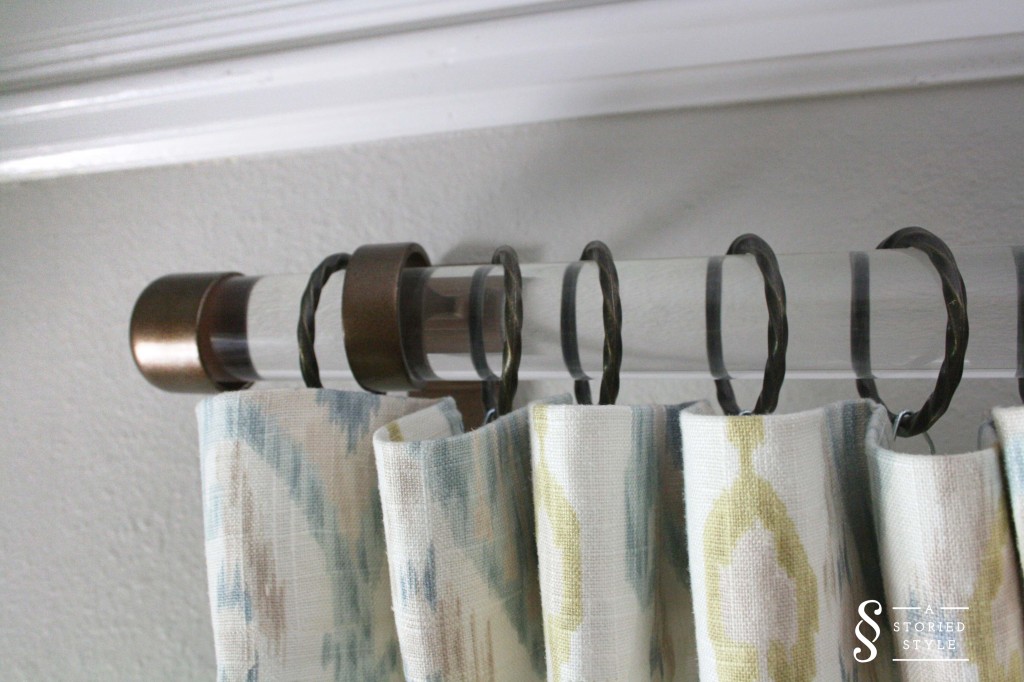

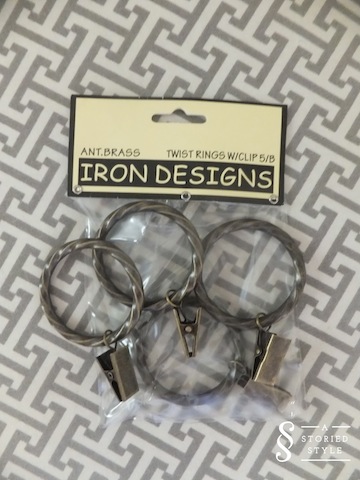

For rings, I found these antique brass rings at Cutting Corners that are a perfect match with the paint color. I don’t remember how much they were, around $5-$6 – very affordable.

I took the little clips off and used drapery hooks instead. Designers Tip: when you are using drapery hooks, always turn the last drapery hook in to get a nice curved edge to your drape. So on the right side, push the tip of the hook through the ring to the left, and visa versa.

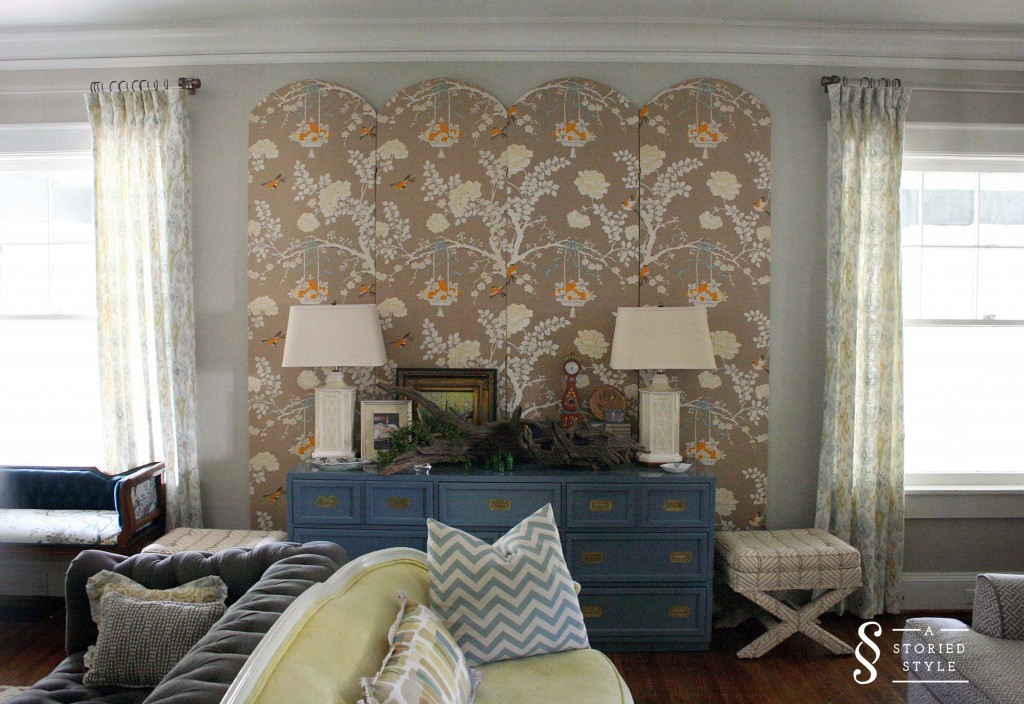

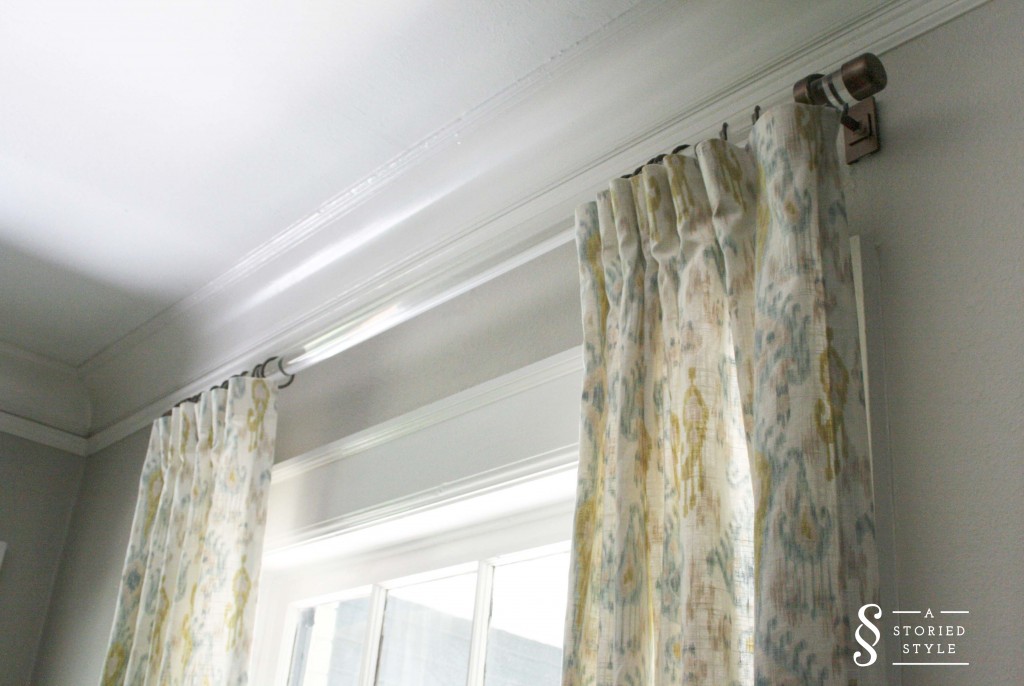

Ready for the big reveal? I have some more work to do on my living room, so I am not ready to show the whole space to you quite yet. For now, enjoy some shots of the windows with my lovely rods.

Image by Kat Phillips, TheGrayAttic.com

As keen as I am on my acrylic drapery rods, I had to show you two other ideas I love.

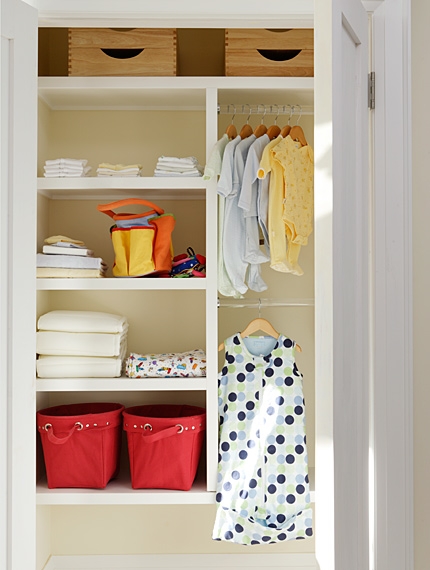

Closet rods!

Sarah Richardson

Staircase railing! Love it!

La Dolce Vita

All in all, my rod and end caps cost around $65. Nice savings, huh?

How will you use this idea?
